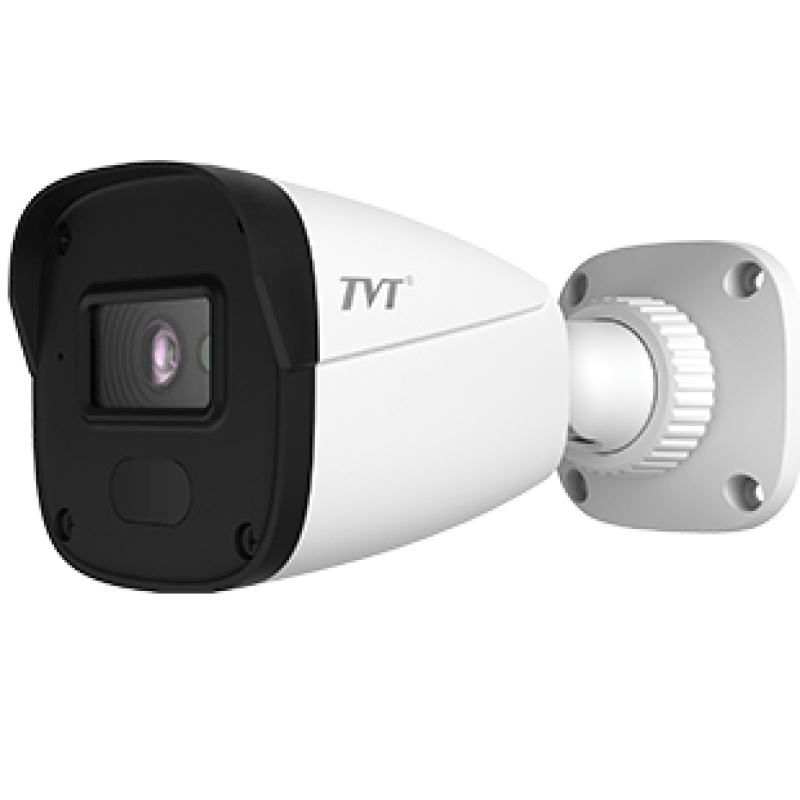

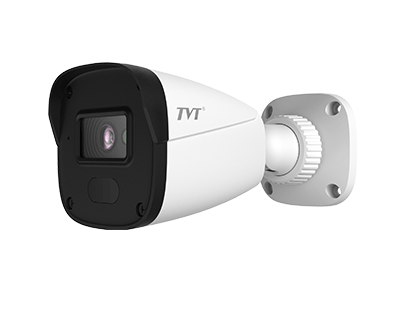

Model | TD-7451AS2S |
Camera | |
Image Sensor | 1 / 2.5 "CMOS |
Resolution | 5MP |
Image Size | 2560 x 1936 |
Video Output | AHD / TVI /CVI |
Image System | PAL / NTSC |
Electronic Shutter | Auto |
IR Distance | 10 ~ 20 m |
Frame Rate | 5MP@20fps/4MP@30fps |
Min. Illumination | |
Lens | 3.6 mm |
Lens Mount | M12 |
S / N Ratio | ≥ 52dB ( AGC OFF ) |
Ingress Protection | IP 67 |
Functions | |
Function Control | OSD ( COC Control ) |
Day & Night | ICR |
Digital WDR | Yes |
Digital NR | Yes, 2D DNR |
Global Exposure | Yes |
Central Exposure | No |
AGC | Yes |
Auto White Balance | Yes |
BLC | Yes |
Front Light Compensation | No |
Contrast | Yes |
Sharpness | Yes |
Smart IR | No |
Image Setting | Yes |
Defect Correction | Auto |
Language | Chinese and English |
Angle Adjustment | Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360° |
Others | |
Power Supply | DC12V ( ± 15% ) |
Power Consumption | IR OFF : < 1W; IR ON : < 3W |
Working Environment | - 10 °C ~ 40 °C, 10 % ~ 90 % （ relative humidity ） |
Dimensions ( mm ) | 162.1x 74 . 8 x 73.8 |
