Features
4/8CH DVR supports TVI / AHD/CVI 5MP/4MP/1080P/720P/WD1 video input
16 CH DVR supports TVI / AHD/CVI 5MP/4MP/1080P video input
4 / 8 / 16 CH DVR supports 2 / 4 / 8 CH 5MP / 4MP / 3MP /1080P / 960P /720P IP video input by default
4CH DVR: 4CH analog video input can be switched to 4CH IP video input
8CH/16CH DVR: 8 analog video input can be switched to 8CH IP video input
Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timed / motion / AI recording
Playback : 4 / 8 / 16 CH simultaneously playback
Search: time slice, time, event, tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device Authorization management, log review and device status review
Support 1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Andriod OS

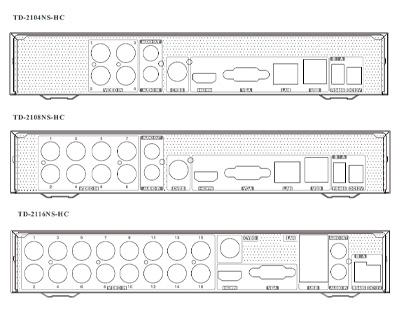

Dimension
Model | TD-2104NS-HC | TD-2108 N S-HC | TD-2116 N S-HC | |
System | OS | Embedded Linux | ||
Video | Analog Video Input | BNC × 4 | BNC × 8 | BNC × 16 |
BNC interface (1.0Vp-p; 75 Ω) | ||||
TVI/ AHD/CVI : 5MP/ 4MP/ 1080P/ 720P/ WD1 | ||||
IP Video Input | 2CH (up to 6CH) | 4CH (up to 12CH) | 8CH(up to 16CH) | |
Up to 5MP@25fps | Up to 5MP@30fps | Up to 5MP@30fps | ||
Total Input | 6CH | 12CH | 24CH | |
Output | HDMI TM × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | |||
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | ||||
BNC × 1 : CVBS ( used as the main or spot output ) | ||||
Compression | H.264/H.265 | |||
Multi-screen Display | 1/4/6/9 | 1/4/6/8/9/13/16 | 1 /4/6/8/9/13/16/25 | |
Audio | Input | RCA × 1 | ||
Output | RCA × 1 (linear, 600 Ω) | |||
Two-way audio | Take up channel one audio input | |||
Compression | G.711(U/A) | |||
Record | Resolution | 5MP Lite/ 4MP Lite/ 1080P/ 1080P Lite/ 720P/ WD1 | ||
Frame Rate | Analog Channel: 5MP Lite :10fps; | |||
4MP Lite/1080P : 12fps (PAL)/15fps (NTSC); | ||||
1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC) | ||||
IP Channel: 25fps (PAL)/30fps (NTSC) | ||||
Bit Rate | 32Kbps ~ 4Mbps | 32Kbps ~ 4Mbps | 32Kbps ~ 5Mbps | |
Mode | Manual, timer, motion, smart event | |||
Playback | Playback | 4CH | 8CH | 16 CH |
Search | Time slice / time / event / tag search | |||
Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events | |||
Function | Play, pause, FF, FB, digital zoom, etc. | |||
Alarm | Mode | Manual, motion, exception, smart event | ||
Input | No | |||
Output | No | |||
Network | Interface | RJ 45 100Mbps × 1 | ||
Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP | |||
Incoming Bandwidth | 16Mbps | 32Mbps | 32Mbps | |
Outgoing Bandwidth | 40Mbps | 60Mbps | 80Mbps | |
Client Connection | Max. 5 users access | Max. 5 users access | Max. 10 users access | |
Mobile Device | OS | iOS, Andriod | ||
Storage | HDD | SATA × 1, up to 10TB | ||
Backup | Local Backup | U disk, USB mobile HDD | ||
Network Backup | Yes | |||
Port | RS 485 | RS 485 × 1 (half-duplex) | ||
USB | USB 2.0 × 2 ( in the rear panel ) | |||
Remote Controller | Optional | |||
Others | Power Supply | DC12V / 1.5A | DC12V / 2A | DC12V / 3A |
Consumption | ≤5W( without HDD) | ≤8W( without HDD) | ≤10W(without HDD ) | |
Dimensions(mm) | 255× 222× 42( W × D × H ) | 255× 234× 42 ( W × D × H ) | ||
Working Environment | -10~50°C, 10%~90% (humidity) | |||
Certificate | CE, FCC | |||
Environmental Protection | Comply with Directive EU RoHS, WEEE, REACH | |||
